Gland Packing

  Service Temp(°C)
980

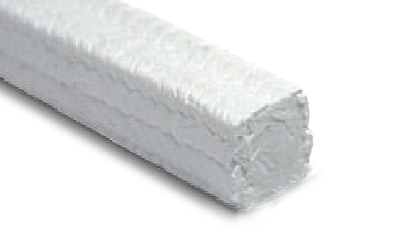

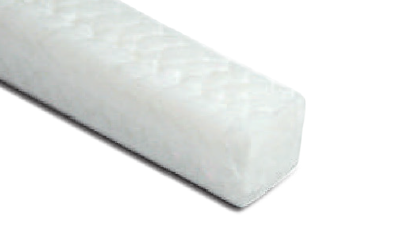

Ceramic Fiber Square Braided Packing

It is a braided packing of ceramic fiber with stainless wire inserted into square cross section.
It has excellent heat resistance and is widely used as packing for door of melting furnace and dry furnace, and it is used for other high-temperature plant facilities.


  Service Temp(°C)
980

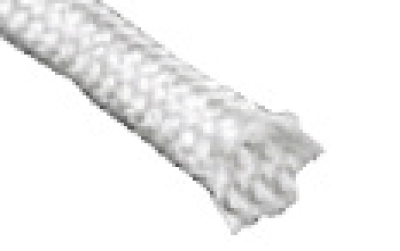

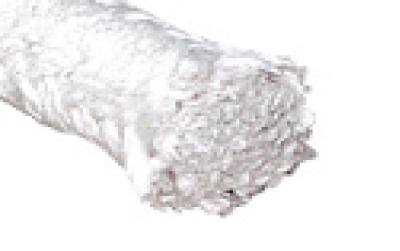

Ceramic Fiber Round Braided Packing

It is a braided packing of ceramic fiber with stainless wire inserted into circular cross section.
It has excellent heat resistance and is used for high temperature flange gaskets, doors and fillers, and high-temperature plant facilities.


  Service Temp(°C)
550

Glass Fiber Square Braided Packing

It is a braided packing of glass fiber inserted into square cross section.
It has excellent heat resistance and is widely used as packing for door of melting furnace and dry furnace, and it is used for other high-temperature plant facilities.


  Service Temp(°C)
550

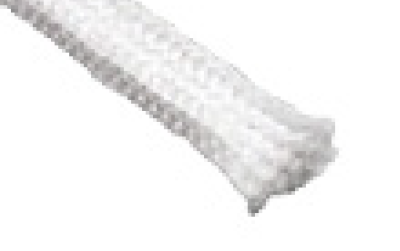

Glass Fiber Round Braided Packing

It is a braided packing of glass fiber with inserted into circular cross section.
It has excellent heat resistance and is used for high temperature flange gaskets, doors and fillers, and high-temperature plant facilities.


  Service Temp(°C)    260
  Pressure(kgf/cm²)   20

PTFE Fiber Packing

Packed with 8 pieces of PTFE fiber or braided braid.
It is suitable for applications that have excellent chemical resistance and corrosion resistance to avoid fluid contamination by packing.
PTFE is low friction but has high thermal expansion coefficient and low heat conductivity, so it needs external cooling when there is danger of heat adhesion due to high heat of friction surface.
It is used for all acidic, alkali, solvent, rotating equipment, reciprocating equipment, valves except molten alkali metal, high temperature fluorine.




  Service Temp(°C)    260
  Pressure(kgf/cm²)   20

Lubricated PTFE Fiber Packing

Packed PTFE fiber braided packing impregnated with PTFE Dispersion and special lubricant.
It is excellent in corrosion resistance and is used for almost all chemicals.
It has strong mechanical strength and excellent abrasion resistance.
It is used for corrosive fluid, hydrochloric acid, acetic acid, lactic acid, various chemicals, strong alkaline, rotary pump, reciprocating equipment, rotating equipment




  Service Temp(°C)    300
  Pressure(kgf/cm²)   20

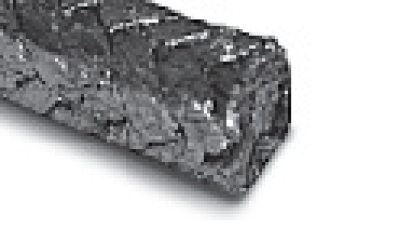

PTFE Impregnated Carbon Fiber Packing

It is braided with carbon fiber, braided with lattice, impregnated with PTFE Dispersion and lubricating oil.
Heat resistance and chemical resistance as well as good thermal conductivity, self-lubricating property, easy dissipation of frictional heat, and long service life. Strong acids, strong alkalis, hydrocarbons, organic solvents, heat oil, steam.




  Service Temp(°C)    300
  Pressure(kgf/cm²)   20

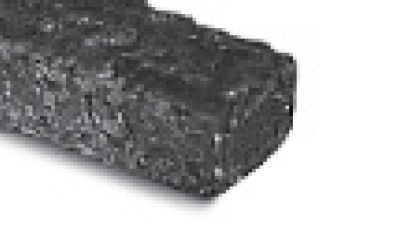

Lubricated PTFE Impregnated Carbon Fiber Packing

It is braided with carbon fiber and impregnated with PTFE dispersion and lubricant.
Heat resistance and chemical resistance, as well as good thermal conductivity, easy dissipation of frictional heat, and long service life.
It is used for corrosive fluid, organic solvent, steam, hot water, hydrocarbons, various oil, rotating equipment, valve, rotary pump, stirrer and so on.






  Service Temp(°C)    -200~450
  Pressure(kgf/cm²)   20

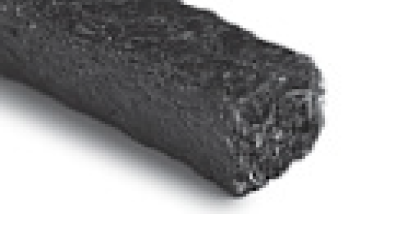

Expanded Graphite Packing

Expanded Graphite Yam is used as braided packing. It has flexibility and stretchability.
Especially, it has excellent self-lubricating and heat-dissipating properties.
It is a packing which does not cause abrasion of shaft and sleeve when used for valves and pumps for high temperature and high pressure.




  Service Temp(°C)    -200~600
  Pressure(kgf/cm²)   100

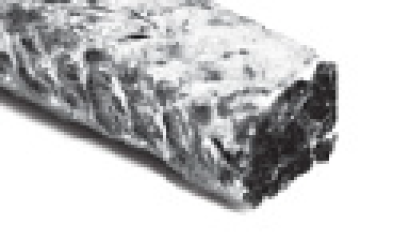

Inconel Wire Inserted Expanded Graphite Packing

Expanded Graphite Yarn reinforced with inconel wire is packed with braided pieces or lattice pieces.
It is a packing suitable for high temperature and high pressure valves because it has excellent heat resistance, good thermal conductivity and excellent heat dissipation to frictional heat.


  Service Temp(°C)    -200~450
  Pressure(kgf/cm²)   350

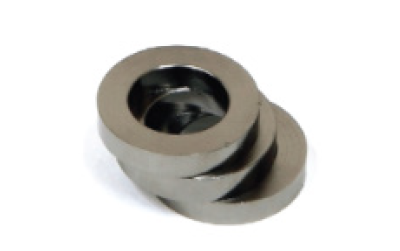

Graphite Molded Packing

It is a ring-packing compression molded graphite mold to a certain size.
Because it is pure natural graphite packing, it can be used from low temperature to high temperature region, and there is little stress relaxation and heat loss phenomenon.
It is used for high temperature and high pressure steam, hot, water, gas, heat oil, high temperature hydrocarbons, organic solvent, cryogenic fluid, LNG etc..
